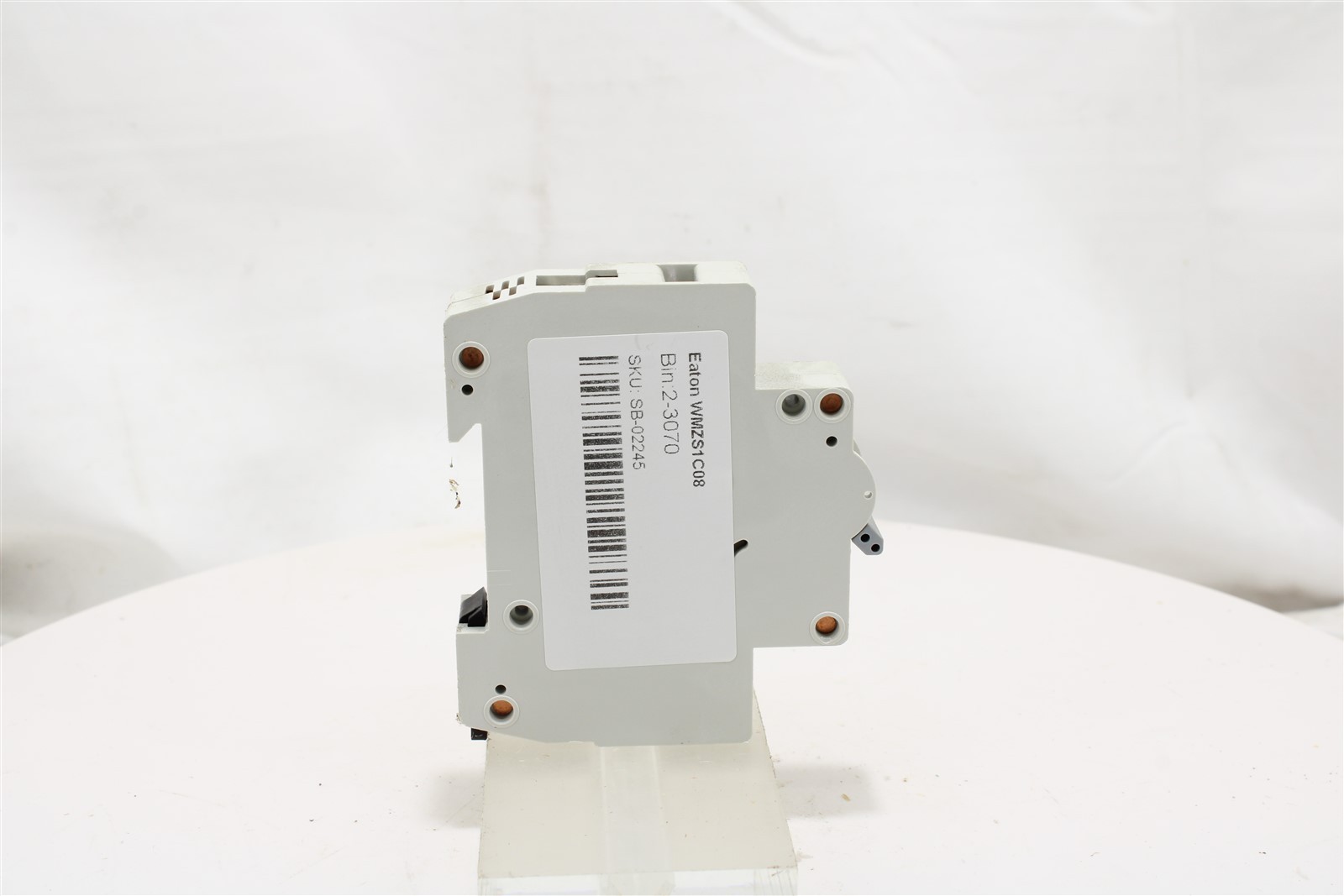

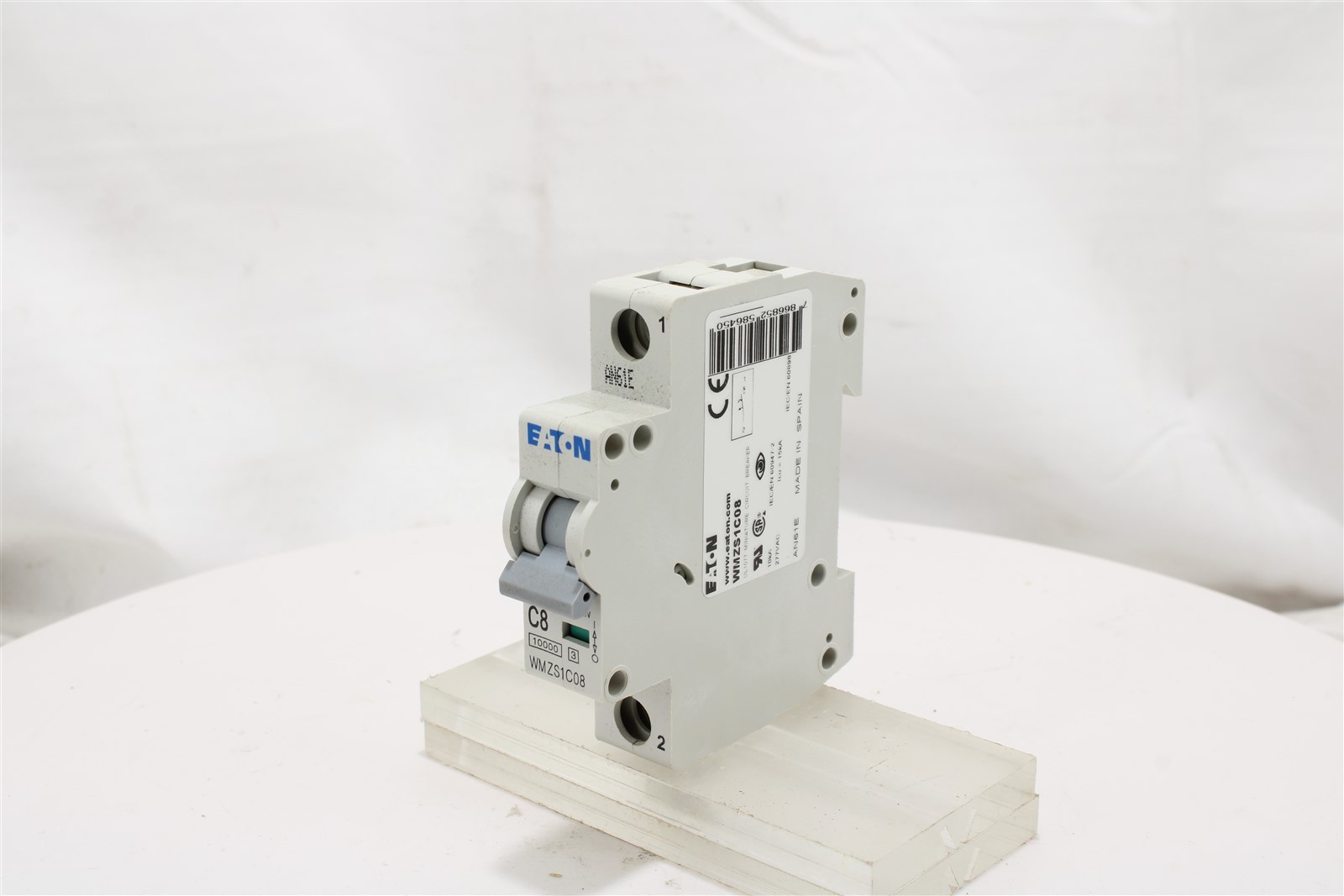

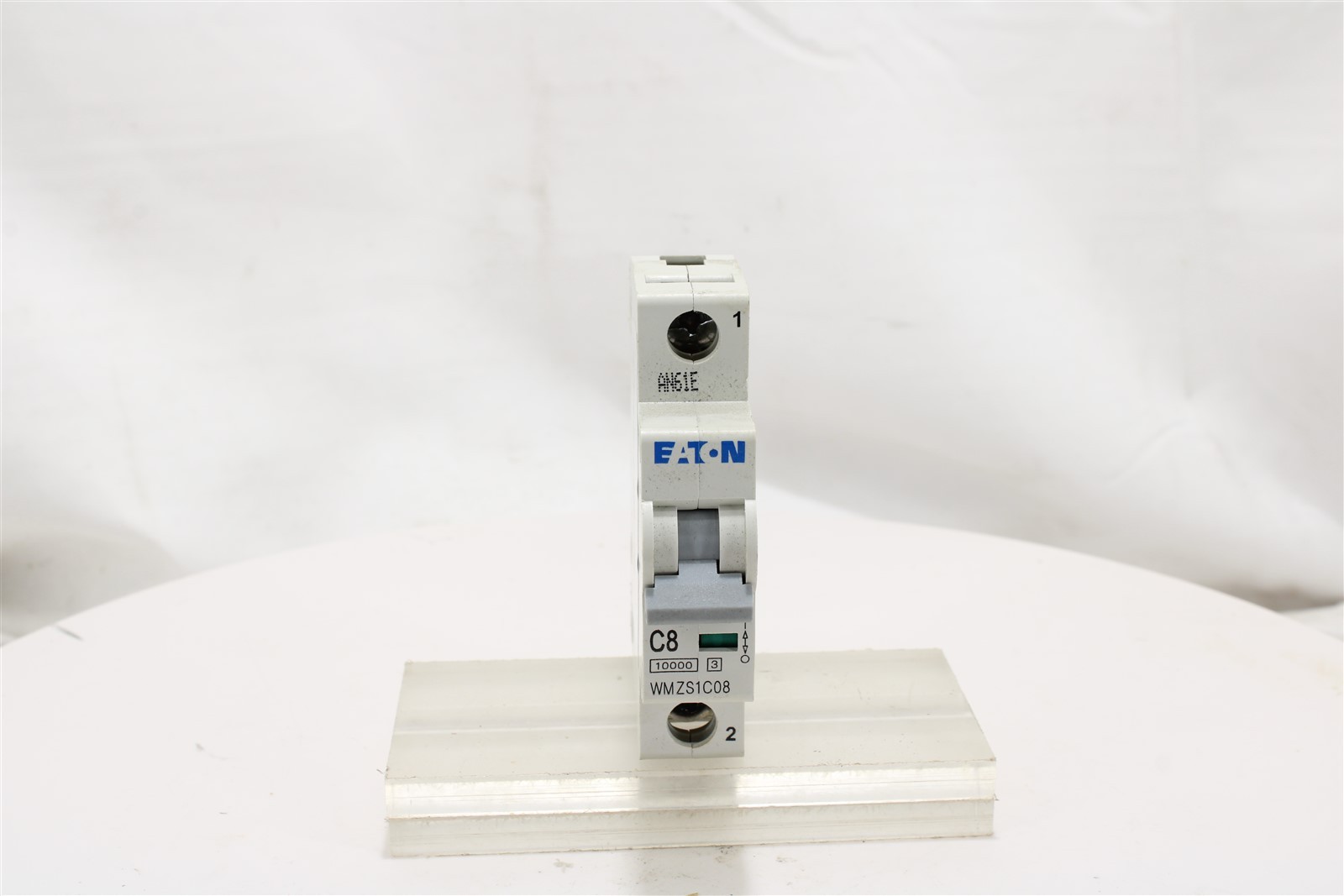

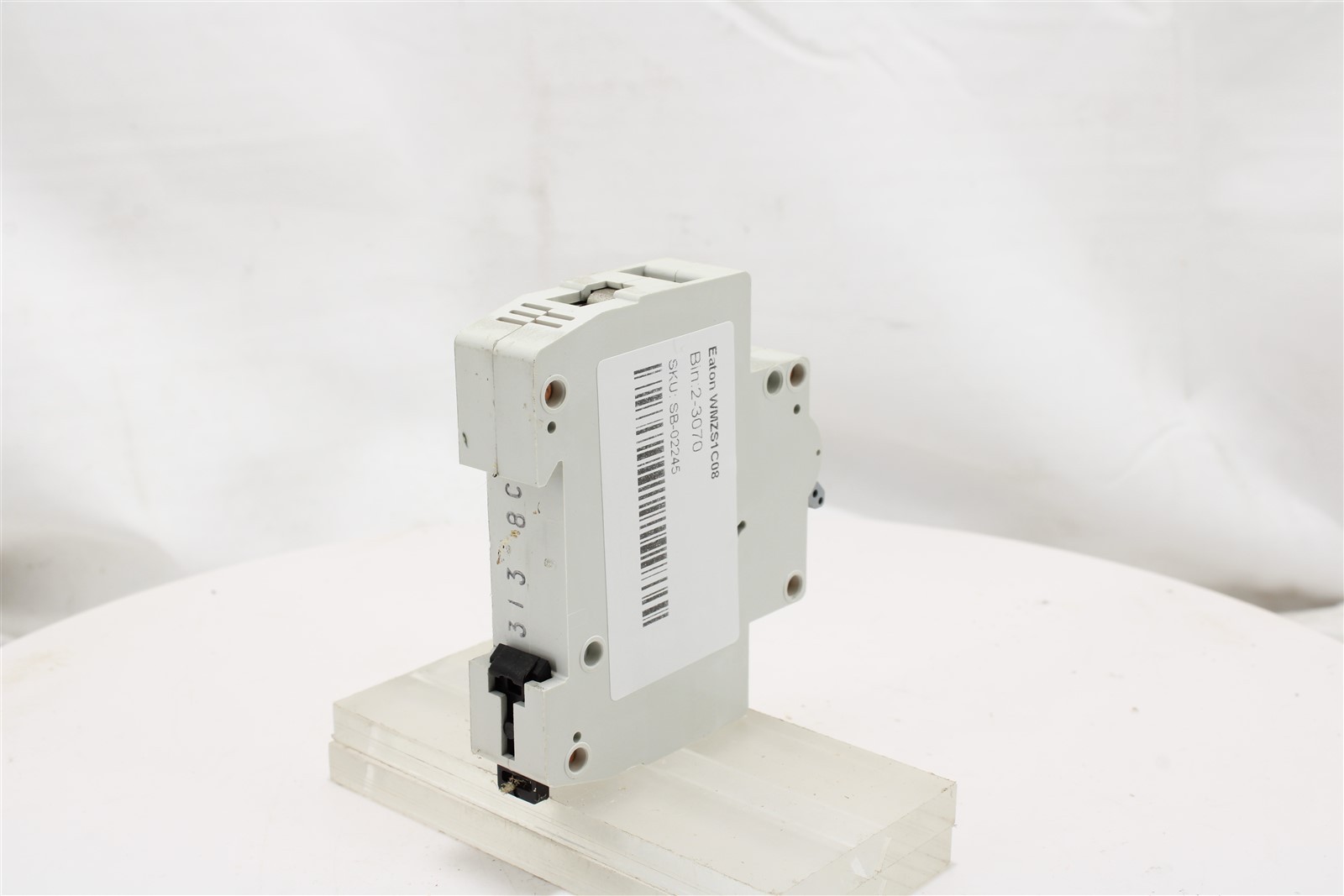

Eaton WMZS1C08 WMZS Supplementary Protector | 1-Pole | 8A | 277V AC / 48V DC
USD 9.99 USD
Specifications
| Brand | Eaton |
| MPN | WMZS1C08 |
| Model | WMZS1C08 |
| Type | Supplementary Protector |
| Current Rating | 1-15 A |
| Voltage | 251-300 V |
| Current Type | AC/DC |
| Mounting Style | DIN Rail |
| Tripping Characteristics | Type C |
| Interruption Type | Thermal Circuit Breaker |
| Electrical Connection | Screw Terminal |
| Compatible Wire Gauge (AWG) | 6-10 |
| IP Rating | IP20 |
| Control Style | Switch |
| Operation Method | On/Off |
| Suitable For | Interior |
| Country Of Origin | United States |
| Unit Type | Unit |
| Maximum Amperage | 8 A |
| Item Height | 2 in |
| Item Width | 1 in |
| Break Time | Instantaneous |
| AIC Rating | 10 kA |
| Series | WMZS |
| Trip Type | Thermal-Magnetic |
What stands out about the Eaton breaker is the crisp label that resists smudging after a few turns.
